Commercial Greenhouses

Zephyr

A cost-effective retail/production house with a unique vertical ridge vent that facilitates superior cooling and dehumidification.

Talk to an Expert
Home / Zephyr

Description

The Zephyr works well for both production and retail settings. It is the ideal choice for natural ventilation and dehumidification. The Zephyr’s curved roof shape and peak vent allow heat to escape from the top of the house, eliminating the need for exhaust fans and vents, even with the gutters full of snow.

Sidewall heights leave ample room for equipment such as booms, shade systems, and hanging baskets. The curved truss design gives you the flexibility to start with a poly-film covering and retrofit to a hard covering later.



Highlights

  • Top-mounted vertical roof vents and drop curtains allow hot air to escape from the highest point of the greenhouse, not at the lower gutter area as in other designs.
  • Ability to hold outside ambient temperature in the greenhouse without the use of mechanical cooling.
  • Poly covering offers a high degree of insulation in colder climates.
  • Vertical vent protects crops from heavy rains and minimizes the risk of losing vents to high winds. Insect screens install in a snap.
  • Winter dehumidification improved by letting only the hottest air at the peak escape while maintaining warm temperatures at the crop level.
  • The strength of the welded truss design gives you the flexibility to hang baskets, vegetable crops, or equipment.
  • Designed to meet local snow and wind load specifications.

Contact Sales

Contact Our Sales Team

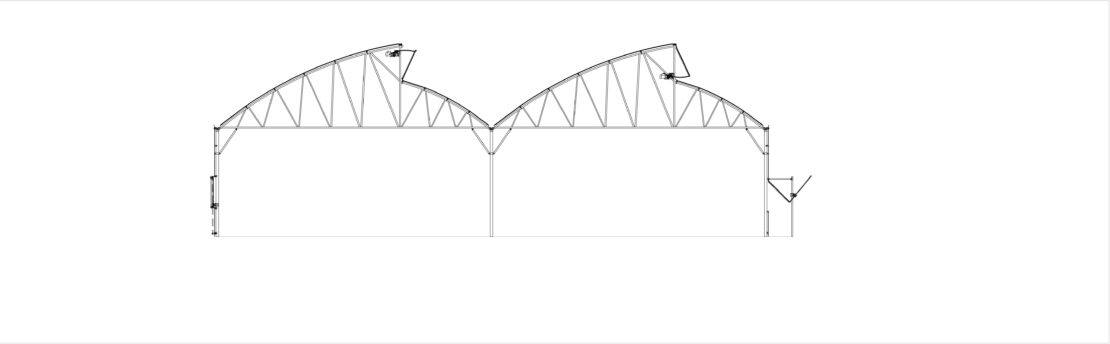

CAD drawing showing truss design for peak venting and other venting options

Unique truss design for peak venting: Atrium vent (left) and ridge vent (right). Sidewallls can be vented with an exterior drop-down guillotine (EDDG) vent (left), swingout vent (right), or roll-up sidewall curtains (not shown).

Standard Zephyr Specifications

  • Widths: 24’, 30’, 36’
  • Gutter height: 10′-16′
  • Bay Spacing: 10’, 12’
  • Load ratings: 15 psf, 20 psf, 30 psf
  • Custom widths and loads available upon request

Get to Know the Zephyr

  • One-piece factory-welded trusses for strength and longevity
  • High-strength Tenzaloy column caps and gutter saddles
  • Purlins, wall framing, and columns are predrilled and made of swaged square steel for strength and longevity
  • Large, walkable gutter for ease of installation of chosen glazing
  • Curved truss design accommodates double-poly, corrugated polycarbonate, or twinwall
  • High-strength double-toothed steel rack arms stronger against wind than single-toothed aluminum
  • Vent options: drop-down curtains, atrium vent, or peak hinged vent. Optional rollup or EDDG vent on the sidewalls and gables to increase air intake area.
  • Optional powder-coated frame, flashings, and extrusions
